The FE series is a flush mount metal switch board. It is the smallest unit in our line of metal switchboards. Perfect for housing, motels , shops and administration buildings.

A very flexible design that comes in 5 different capacities and sizes including our most economic and smallest size enclosure the FE10 suitable for small residential spaces.

Capacities & Dimensions

FE family consists of FE16 for a single row of up to 16 modules of multi 9 , FE 32,FE 48, FE 64 and FE 80. All units can accommodate a Moulded Case Circuit breaker.

Specifications

• 1 mm gauge sheet steel. Epoxy finish
• FE can accommodate all range of Schneider’s multi
• 9 (miniature circuit breakers, switches, fuses, meters,
  relays, contactors, pilot lamps and others).
• Colour “RAL 7032”
• Degree of protection IP40.
• Mounting: flush mounted

Ratings

• Rated operating voltage: Up to 1000 V
• Rated insulation Voltage: 1000 V
• Rated current: Up to 125 Ampere
• Short-time withstand capacity “ 10 KA»
• Frequency: 50 / 60 HZ

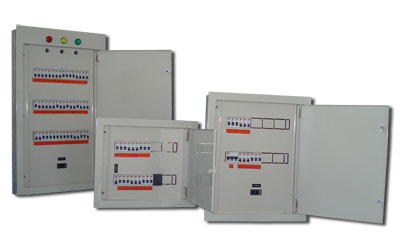

Left to right, the FE64, FE32 and FE64

The FE16

The FE80
