Deeb Engineering Industries
deeb Power Distribution Panels
We carry a full line of quality engineered and produced low voltage power distribution panels starting from the small home GF series to the industrial strength type tested Prisma iPM-M. We cover a wide spectrum of serving our clients for many years in all types locations. Please feel free to take a tour of our products below and do not hesitate to contact us if you have any inquiries or questions.

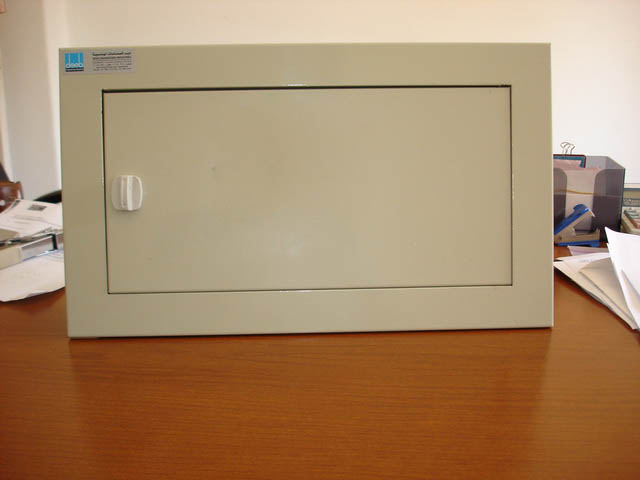

GF up to 63A / IP40
One of our small panel series, it accommodates 15 miniature circuit breakers in a multiple of 1 or 2 rows. A commercial design that is suitable for use in homes, shops and offices.
| Capacities & Dimensions |
|||||
| Size | Rows | Modules | W (mm) | H (mm) | D (mm) |
| GF-10 | 1 | 15 | 356 | 190 | 80 |
| GF-15 | 2 | 30 | 356 | 310 | 80 |
Specifications
- Material : 1 mm gauge cold rolled sheet steel
- Surface Treatment : Anti-corrosion coating, texture, thermal polymerized polyester-epoxy powder
- Colour: RAL 1119
- Degree of Protection: IP40
- Mounting: Flush mounted
Ratings
- Rated Operating Voltage: Up to 1,000 V
- Rated Insulation Voltage: 1,000 V
- Rated Current: Up to 125 Ampere
- Short-time Withstand Capacity: 10 KA
- Frequency: 50/60 Hz

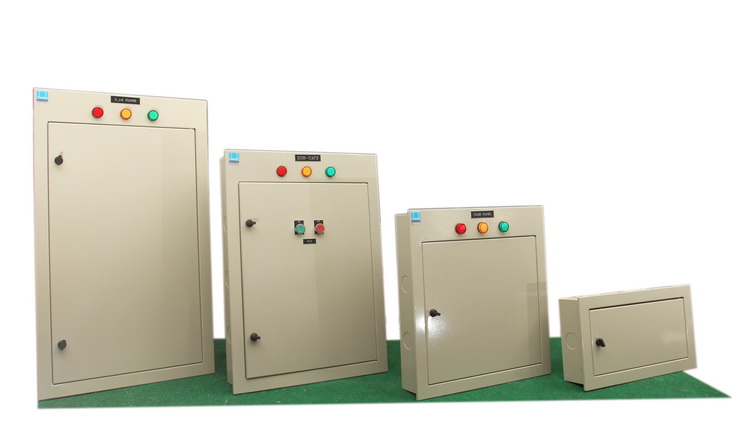

FE up to 125A / IP40
The FE series includes the smallest units in our line of metal switchboards. It is flush mounted and perfect for housing, motels, shops and administration buildings.
| Capacities & Dimensions Clients can choose to add a set of indicator lights to the panel increasing its height Starting from FE-38, panels can accommodate a moulded case circuit breaker |
||||
| Reference | Rows | W (mm) | H (mm) | D (mm) |
| FE10-L | 1 | 470 | 290 | 80 |
| FE23 | 1 | 470 | 440 | 90 |
| FE38 | 3 | 470 | 590 | 90/100/120 |
| FE53 | 4 | 470 | 740 | 90/100/120 |
| FE68 | 5 | 470 | 890 | 90/100/120 |
| FE83 | 5 | 470 | 890 | 90/100/120 |
Specifications
- Material: 1 mm gauge cold rolled sheet metal
- Surface Treatment : Anti-corrosion coating, texture, thermal polymerized polyester-epoxy powder
- Colour: RAL 7035
- Degree of Protection: IP40
- Mounting: Flush mounted
Ratings
- Rated Operating Voltage: Up to 1,000 V
- Rated Insulation Voltage: 1,000 V
- Rated Current: Up to 125 Ampere
- Short-time Withstand Capacity: 10 KA
- Frequency: 50/60 Hz

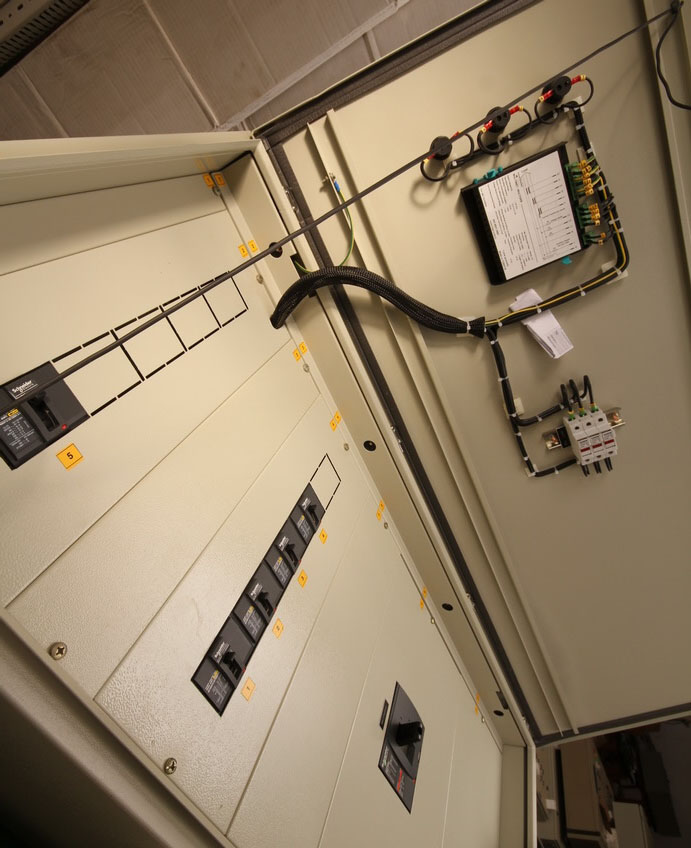

SE up to 160A / IP40
The SE series is a group of surface or semi-recessed mounted metal switchboards including a wide range of sizes making it suitable for domestic, commercial and industrial applications.
| Capacities & Dimensions | ||||
| Reference | Modules of 50mm | Width (mm) | Height (mm) | Depth (mm) |
| SE-25 | 4 | 500 | 250 | 150 |
| SE-50 | 9 | 500 | 500 | 150 |
| SE-75 | 14 | 500 | 750 | 150 |
| SE-100 | 19 | 500 | 1000 | 150 |
Specifications
- Material: 1 mm gauge cold rolled sheet steel
- Surface Treatment : Anti-corrosion coating, texture,
thermal polymerized polyester-epoxy powder - Colour: RAL 7035
- Degree of Protection: IP40
- Mounting: Surface or semi recessed
Ratings
- Rated Operating Voltage: Up to 1,000 V
- Rated Insulation Voltage: 1,000 V
- Rated Current: Up to 160 Ampere
- Short-time Withstand Capacity: 15 KA
- Frequency: 50/60 Hz

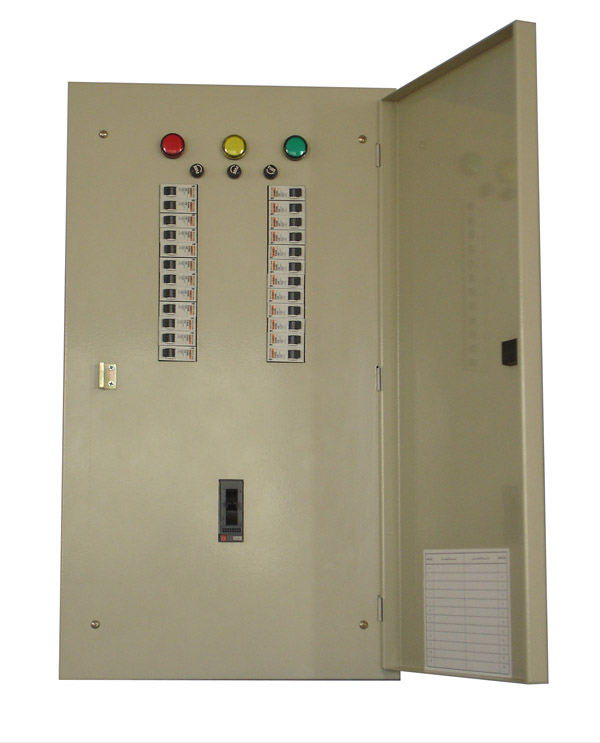

CU up to 250A / IP40
The CU series is an economic flush mount metal switchboard, great for motels, shops and small industrial places.
| Capacities & Dimensions CU series can accommodate a master moulded case circuit breaker (Depth=120mm) |
|||
| Reference | Width (mm) | Height (mm) | Depth (mm) |
| CU12 | 375 | 569 | 100/120 |
| CU18-24 | 375 | 677 | 100/120 |
| CU36 | 375 | 785 | 100/120 |
Specifications
- Material: 1.0 mm gauge cold rolled sheet steel
- Surface treatment : anti-corrosion coating, texture,
thermal polymerized polyester-epoxy powder - Supplied with a fishbone type busbar
- Colour: RAL 7035
- Degree of protection: IP40
- Mounting: flush mounted
Ratings
- Rated operating voltage: Up to 1000 V
- Rated insulation Voltage: 1000 V
- Rated current: Up to 250 Ampere
- Short-time withstand capacity: 15 KA
- Frequency: 50/60 Hz

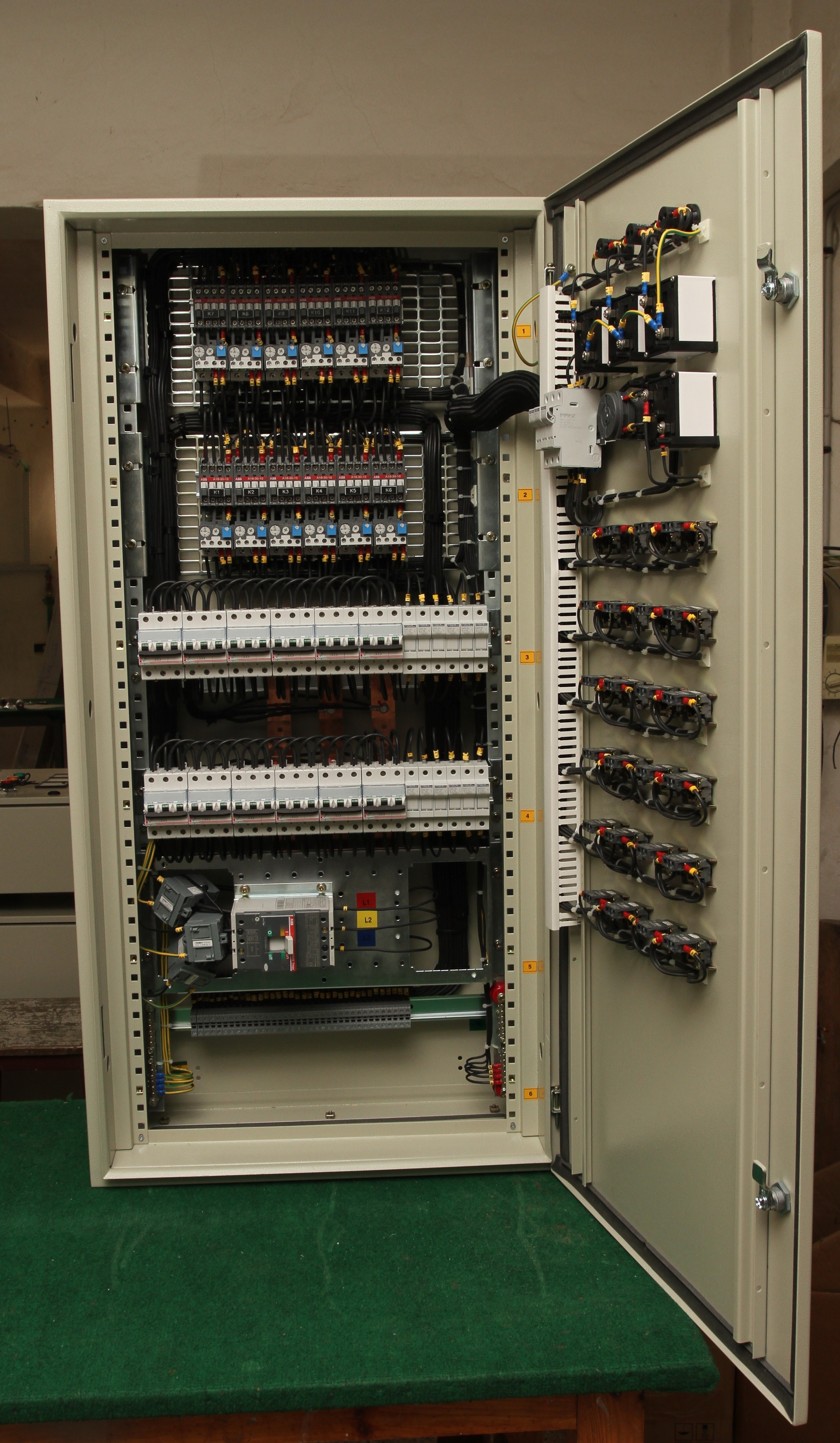

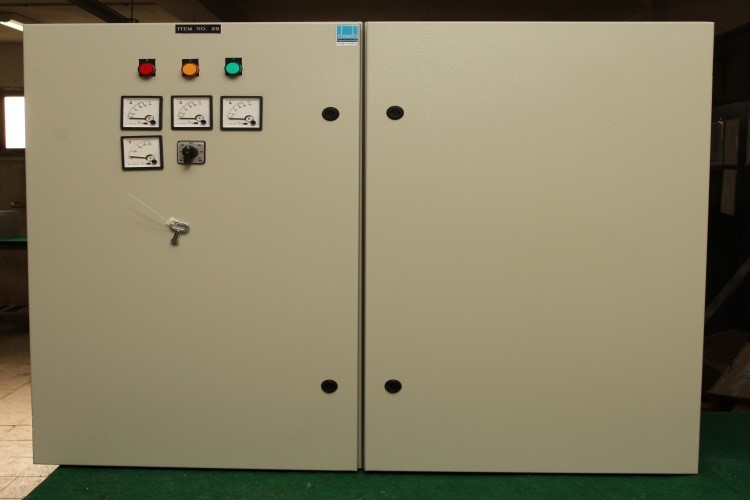

SG up to 630A / IP54
The SG series is a set of medium sized surface and semi-recessed mounted metal switchboards. SG is suitable for wide range of applications (ATS, MCC, control panel…) including medium size industrial facilities. It can accommodate most electrical components (change over switches, load break switches, KWH meters, circuit breakers, contactors, isolator switches, pilot lamps and PLCs) with bottom or top cable entry.
| Capacities & Dimensions | |||
| Reference | Width (mm) | Height (mm) | Depth (mm) |
| SG-604020 | 400 | 600 | 200 |
| SG-606020 | 600 | 600 | 200 |
| SG-806020 | 600 | 800 | 200 |
| SG-1006020 | 600 | 1000 | 200 |
| SG-1206020 | 600 | 1200 | 200 |
| SG-808020 | 800 | 800 | 200 |
| SG-1008020 | 800 | 1000 | 200 |
| SG-1208020 | 800 | 1200 | 200 |
| SG-1408020 | 800 | 1400 | 200 |
| SG-606025 | 600 | 600 | 250 |
| SG-806025 | 600 | 800 | 250 |
| SG-1006025 | 600 | 1000 | 250 |
| SG-1206025 | 600 | 1200 | 250 |
| SG-808025 | 800 | 800 | 250 |
| SG-1008025 | 800 | 1000 | 250 |
| SG-1208025 | 800 | 1200 | 250 |
| SG-1408025 | 800 | 1400 | 250 |
Specifications
- 1.25 mm gauge cold rolled sheet steel.
- Surface treatment : anti-corrosion coating, texture,
thermal polymerized polyester-epoxy powder - Colour “RAL 7035”
- Degree of protection IP54
- Mounting : surface or semi-recessed
Ratings
- Rated operating voltage: Up to 1000 V
- Rated insulation Voltage: 1000 V
- Rated current: Up to 630 Ampere
- Short-time withstand capacity “25 KA"
- Frequency: 50 / 60 HZ

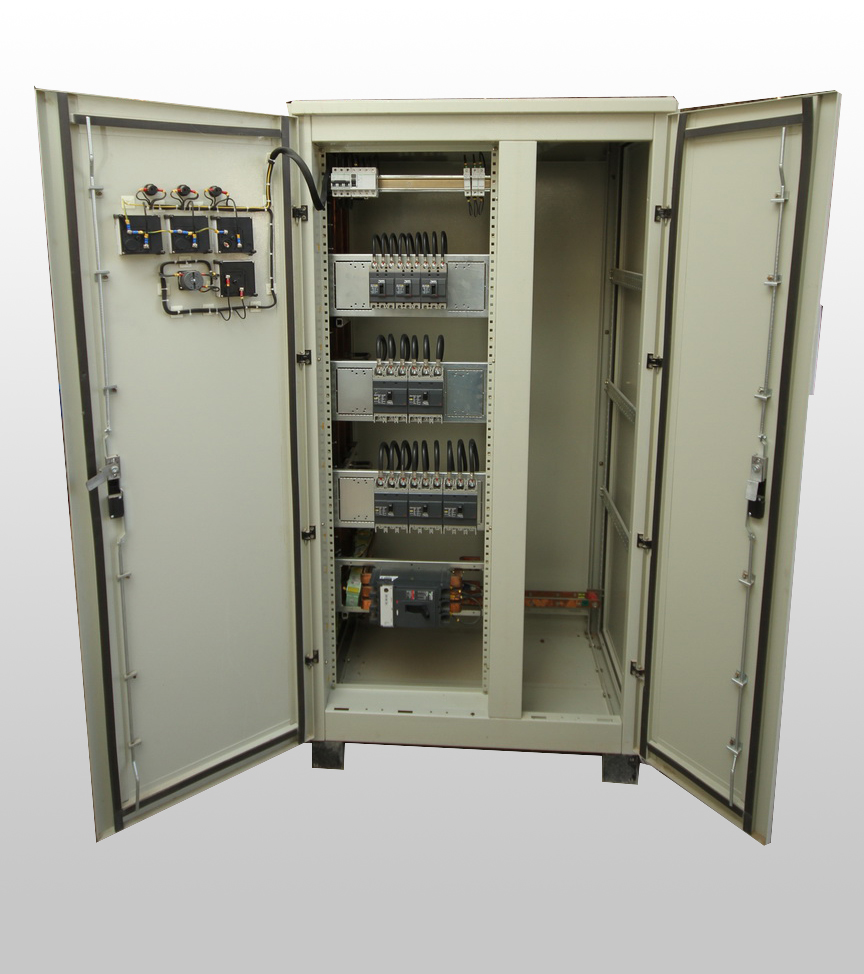

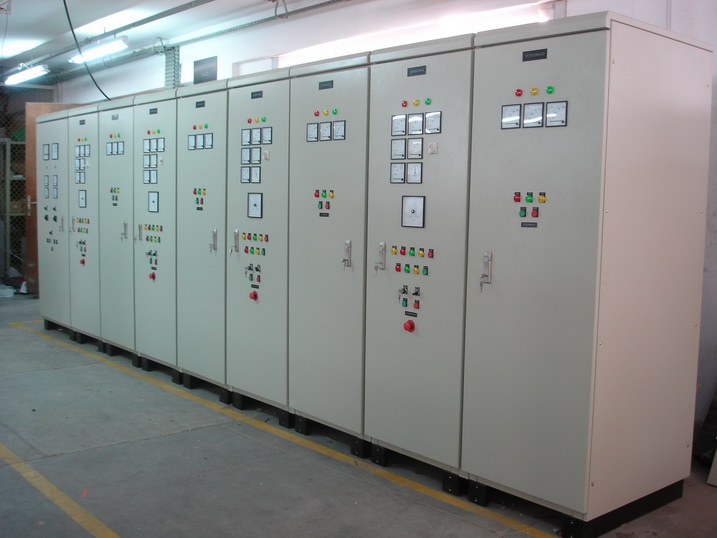

DP (aka FSP) up to 6300A / IP54
The DP panel is Deeb’s latest development. More compact and light weight than its predecessors the FSP and Type A, it is our modular flagship line of enclosure suitable for all applications:
main/sub distribution, final distribution, phase correction, ATS, synchronization, power factor and motor control centers. System modularity means that the electrical installation protection, control, technical management & monitoring functions are integrated in the same switchboard. It also simplifies maintenance, operation and upgrading. This type of panels is suitable for large industrial places. It can accommodate all types of electrical components and affords top or bottom cable entry.
| Capacities & Dimensions | |||
| Reference | Width (mm) | Height (mm) | Depth (mm) |
| DP-20-06 | 600 | 2000 | 600/800 |
| DP-20-08 | 800 | 2000 | 600/800 |
| DP-20-10 | 1000 | 2000 | 600/800 |
| DP-20-12 | 1200 | 2000 | 600/800 |
Specifications
- Material : 1.5/2mm gauge cold rolled sheet steel
- Surface Treatment : Anti-corrosion coating, texture, thermal polymerized polyester-epoxy powder
- Colour: RAL 7035
- Degree of Protection: IP54
- Mounting: Floor standing
Ratings
- Rated Operating Voltage: Up to 1,000 V
- Rated Insulation Voltage: 1,000 V
- Rated Current: Up to 6000 Amperes
- Short-time Withstand Capacity: 70 KA
- Frequency: 50/60 Hz
Prisma IPM - L up to 630 A/IP54
Prisma IPM - M up to 4000A / IP54

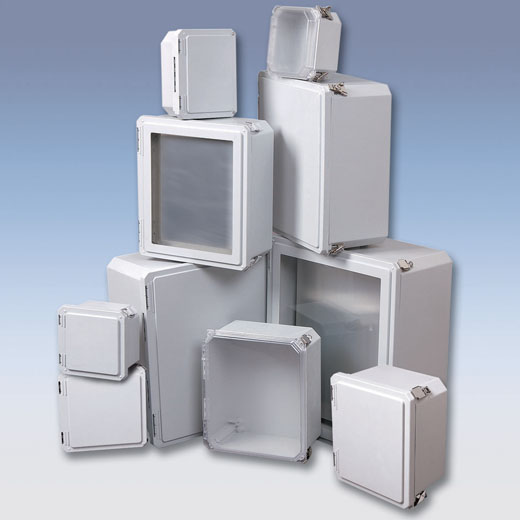

Fiber Glass Panels
Fiber glass is an economical alternative to steel panels with the following advantages:
- Reduced weight
- Gel coating covering panel is more durable than paint
- Sleek contours
- Non corrosive
- Sound deafening materials can be laminated between layers of fiberglass to achieve a muffled effect
- Stability in shape, exhibiting the least amount of expansion and contraction
- Requires very little maintenance (no rust, no painting, no wood rot)
- Non combustible
- Chemically resistant
A combination of heights, widths, depths and colours to fit every environment and serve various uses

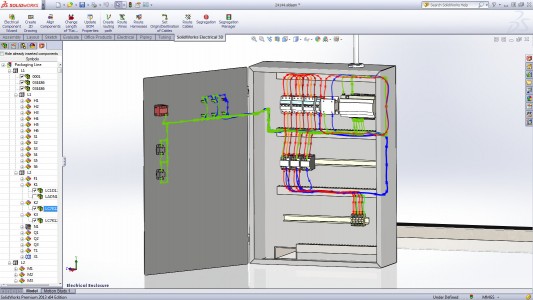

Flexible Modern Design
We at Deeb Engineering Industries help you asses your needs and provide the most suitable distribution panel solution utilizing the latest technologies in design and production.
Customer satisfaction
Our aim is your satisfaction.
ISO 9001 Certified.
